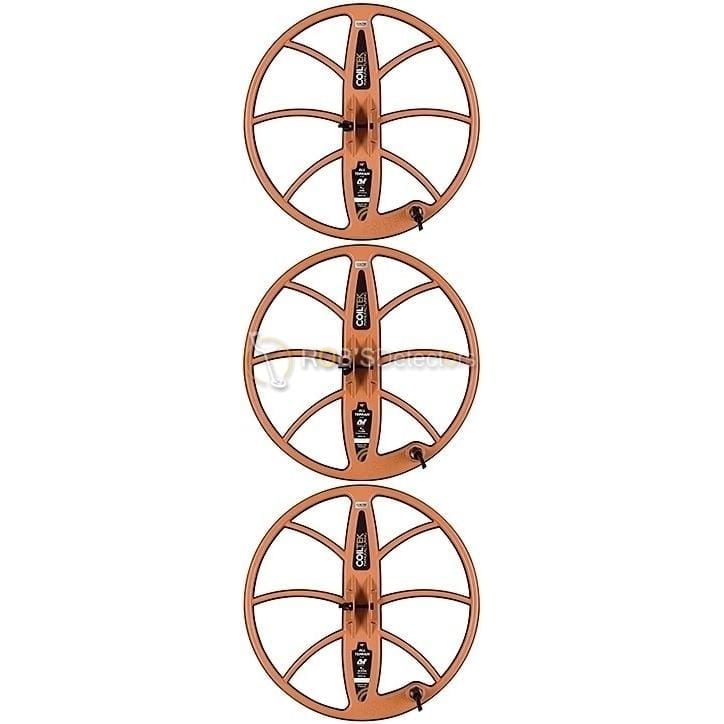

Coiltek 15″ All Terrain for X-TERRA 3Khz Searchcoil

Description

This is a discontinued item, new Searchoil – Coiltek 15 All Terrain 3Khz

Coiltek is the only global after market manufacturer of fully approved Minelab
X-TERRA coils utilizing VFLEX technology. This fully waterproof coil
has excellent depth capabilities, pinpointing easily with the tip of
the coil or using the pinpoint function on the detector. The 15″ X-TERRA
has a new design and is available in all 3 frequencies – punching deep
into the ground and giving great overall performance no matter what the
terrain.

For coil to X-TERRA detector compatibility please see the chart below.
Size: 370mm Weight: 740g / 26.1oz

Coil specifications

• 15″ X-TERRA coil in 3kHz* is suited to low mineralised areas, great for extra depth
• 15″ X-TERRA coil in 7.5kHz* is the perfect all-rounder
• 15″ X-TERRA coil 18.75kHz* is your choice for sensitivity and great gold hunting.
• All 15″ X-TERRA* coils frequencies are fully waterproof
• 6” in 3kHz* is excellent for high trash and high conductive targets
• Lightweight with a robust construction
• Easy pinpointing
• DD configuration
• Good stability and sensitivity
• All coils include cable
• All coils supplied with fitted skid plate

*For compatibility data see bottom of this page

COIL SPECIFICATIONS AND FEATURES

*Compatibility of new X-TERRA Coils

15″ 3kHz low frequency and 6″ 3 kHz low frequency coils are only compatible with the below Minelab X-TERRA detectors
Compatible Metal Detectors:

15″ 7.5 kHz medium frequency coil is compatible with all Minelab X-TERRA detectors.
Compatible Metal Detectors

15″ 18.75 kHz is compatible with all Minelab X-TERRA detector models (except for the X-TERRA 30)
Compatible Metal Detectors

Thanks to The Searcher for this story:

When I heard Coiltek were going to release an after market coil for
the X-Terra range, I crossed my fingers it would be a monster. I wasn’t
disappointed! The new coil is 4″ larger than the previous largest
available, filling an empty niche in the X-terra coil range.

Out of the box I instantly recognised the new coil as a WOT coil
(Wonderful Orange Thing!), with the same specifications I’d previously
used first with Sovereign and later with the Explorer range. Like all
the previous WOT coils, this one is totally waterproof and is happy to
be dunked in deep water. It is solidly built and will take years of
(ab)use in the harshest of environments.
