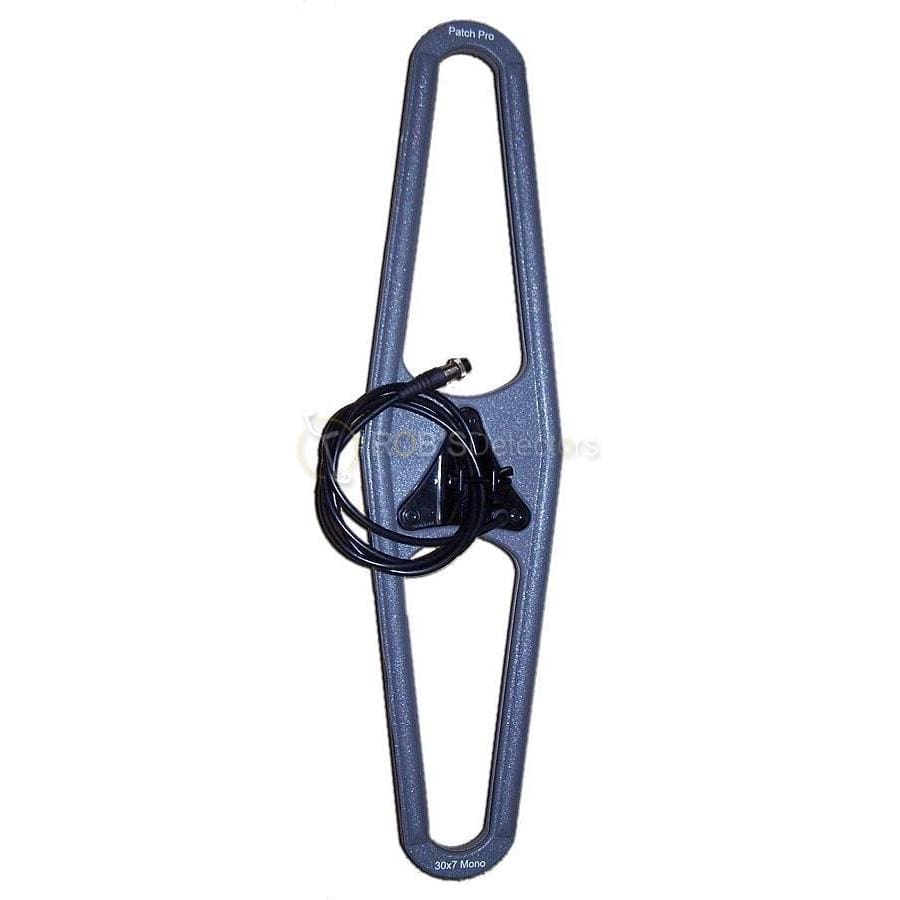

Nugget Finder 30×7 inch Elliptical Patch Pro Searchcoil

If you’re in the market for a coil that will let you cover a massive amount of ground in a hurry, then look no further! The 30″ Patch Pro is Nugget Finder’s most powerful patch finder ever! Measuring 30″ long x 7″ wide, this coil offers incredible sensitivity and huge ground coverage. It may look big, but don’t let its size fool you. Weighing in at only two pounds, this is quite possibly the lightest large diameter coil on the market today. It is ideal for prospectors that hunt relatively flat, open ground. It has also proven quite effective on the beach. The elliptical shape allows for huge sweeps, while still making it easy to navigate around obstacles. The monoloop configuration causes the coil to be ‘hot’ around the edges which aides in pinpointing targets, plus it helps to locate nuggets hidden up under bushes and trees. Like our other Super-Lite coils, this one is also spoked in design. The center portion has been essentially hollowed out to dramatically reduce the weight, which means you will be able to detect longer with less arm fatigue. The newly designed skid plates are custom molded to fit the support struts of the coil and offer maximum protection.


This coil is Monoloop in configuration and compatible with all Minelab GPX/GP/SD Series metal detectors. It comes standard with skid plate and a full 2-Year Warranty. Measures approx. 30” x 7”.

Nugget Finder uses only the best quality components to produce the highest quality professional grade search coils on the market. These coils have been specifically designed to enhance the performance of the Minelab GPX/GP/SD Series metal detectors.

Webmaster Notes: This searchcoil is excellent for covering larger amounts of ground quickly.  Recommended for detecting large areas of ground for nugget patches or trying to narrow down a location with gold nuggets, coils or relics.  Also very narrow design allows you to work within obstructions very easily.


NOT ALL COILS ARE CREATED EQUAL! Before you purchase another coil for your Minelab metal detector make sure you ask the dealer if it can offer the following features:


New Spec Litz Wire with modified shielding
Improved sensitivity and signal response on small gold
Improved EMI stability particularly on the GPX Series models

Totally new design; even Stronger and more rigid than before.
Super Strong Epoxy Reinforced Polyurethane bracket.
All models are still fully bonded with potted winding’s

WATER RESISTANT: Fully sealed design with O-Ring sealed cable. Water resistant to a depth of 2 feet.


WEIGHT: Even though the Advantage range has more wire and a stronger design, weight remains roughly the same as the previous models. This was achieved through innovative design not by cutting corners!


WARRANTY: 2-year Warranty from date of purchase.
