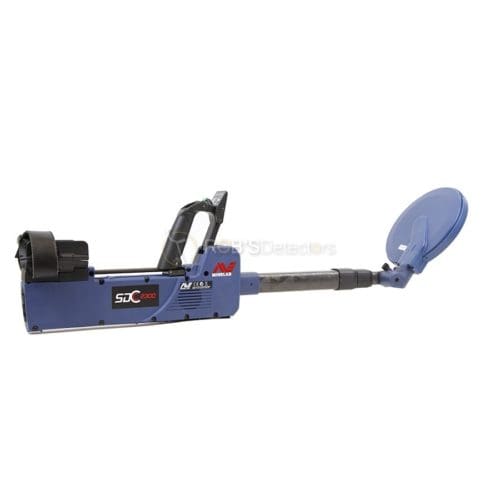

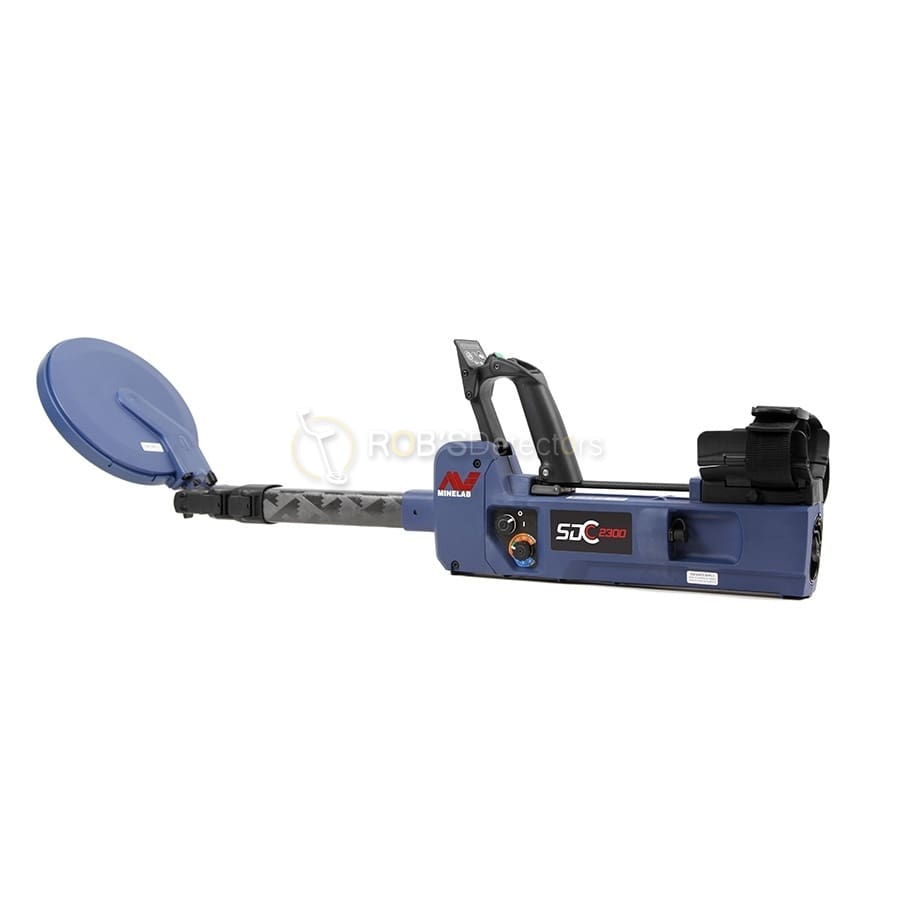

Minelab SDC 2300 Gold Metal Detector “New Version” – 100% Waterproof

(2 customer reviews)

Original price was: $4,679.00.Current price is: $3,099.00.

Mid-Line Pulse Induction

In stock (can be backordered)

Add to wishlist Add to compare

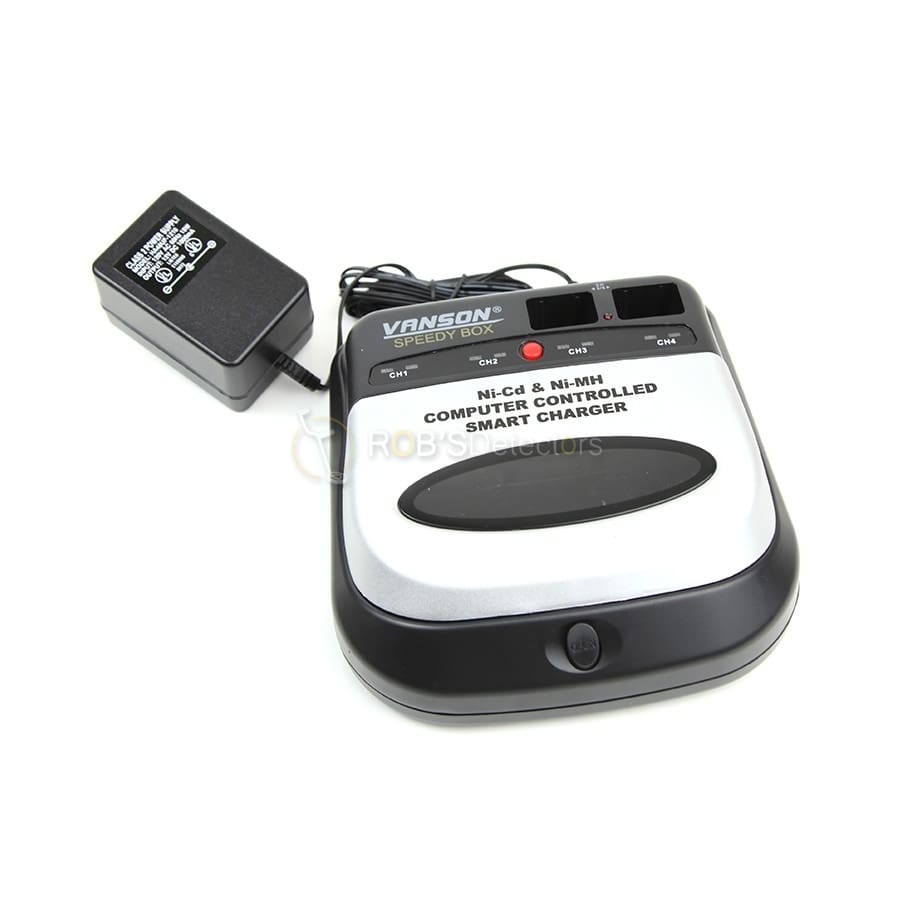

“New Version” (li-ion Battery pack with charger, New Minelab headphones, armrest cover, searchcoil joint protector) – Minelab SDC 2300 Metal Detector – All Terrain Gold Detecting

15% Military Discount for all Military that have proof of DD214 or Military ID in the US.

** Free 2024 Prospectors Bundle Package only available from Rob’s Detector Sales **

** We offer the Free Bundle Below for normal MAP price, we don’t bundle discounts and FREE bundles together.  Call for questions.

  • Doc’s 22″ Prospecting Pick with Super Magnet
  • Doc’s Detecting SCOOP Pouch
  • Plastic Nugget Recovery Scoop (choose your color – Green, Yellow, Red or Black)
  • Doc’s Padded Control Box Cover for SDC 2300
  • Replacement Spare 8″ Round Searchcoil cover – Skidplate
  • Minelab Baseball Cap
  • Shipping, Handling and Full Insurance on package shipped to the US Only, No International Order available.
  • Lifetime Support – Email, Phone, Text and Forum Support beyond the sale
  • Full Day of Arizona Field Instructions/Training with the purchase

They say the best things come in small packages! This is certainly true for the SDC 2300. It’s compact, waterproof and built to perform in the toughest conditions. Undiscovered gold patches on land and underwater won’t stand a chance when the Minelab SDC 2300 gold detector makes its debut.

The SDC 2300 is a high performance mid-range gold detector, perfect for chasing down those elusive sub-gram nuggets both on land and underwater.  From Minelab, the company that knows Gold, this compact waterproof gold detector comes with easy-to-use controls and is assembly-free! Let the versatility of the SDC 2300 open up a whole new range of possibilities for finding more gold nuggets!

“You will find more small nuggets and fine-threaded specimen gold in mineralized soils with the SDC 2300 than any other gold detector, including the GPX 5000.” – Bruce Candy

What is MPF (Multi Period Fast) Technology – MPF incorportes extemely fast Pulse Induction switching between Transmit (Tx) and Receive (Rx) detector signals.  Therefore minimal residual transmit signal is present during the receive cycle, enabling clear sharp detection of very small gold.

View a few of my personal Youtube videos on the new Minelab SDC 2300 Metal Detector below –

Compact Size

Folds to small portable size, 8 ½ ” (216mm) by 16” (406mm).  Fits into carry-on luggage and most backpacks.  Minelab has designed a SDC 2300 carry bag show below, but this unit will fit in most outdoor type backpacks used today for hiking, backpacking and exploring.

Waterproof Capability

Fully submersible to 10’ (3m) for detecting riverbeds and shorelines allowing you to transition with ease from land to water. Now you can use your Minelab GOLD detector in all wet weather conditions allowing you to stay on the goldfields for longer, even in the rainy season.

Rugged & Assembly Free

Military grade construction, one piece detector designed to perform in the toughest conditions.  Very similar to Minelab’s F3 Military version metal detector.

Easy Patch Hunting

Search quickly and efficiently in hard to reach and remote places to find those elusive gold bearing clustered deposits.

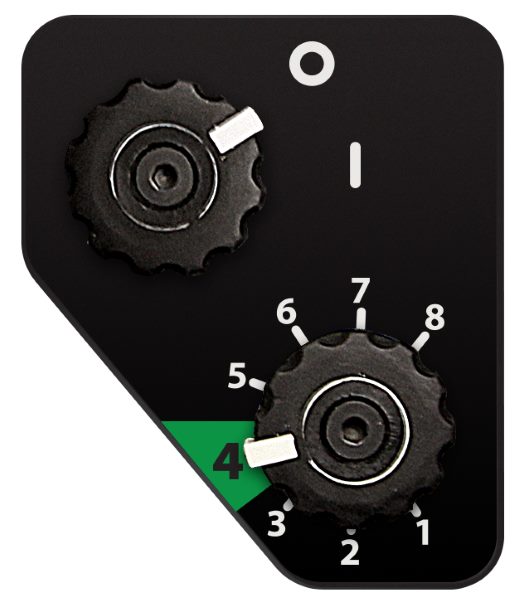

Easy-to-use Controls

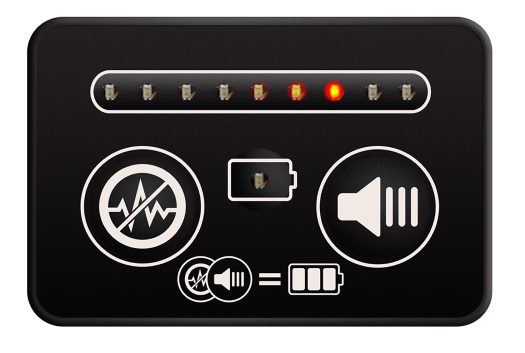

LED Indicators

Shows target signal strength, threshold level and battery status.

Audio Control

Adjusts threshold level and low/high audio tone to suit user preference.

Noise Cancel

Easy button press to automatically reduce external interference.


Eight position adjustments for optimum target identification in varying ground conditions.

MPF Technology

MPF (Multi Period Fast) technology incorporates extremely fast Pulse Induction switching between Transmit (Tx) and Receive (Rx) detector signals. Therefore minimal residual transmit signal is present during the receive cycle, enabling clear sharp detection of very small gold.

Standard Accessories (included with detector)

Koss UR30 Headphones for the Minelab SDC 2300 Metal Detector (non waterproof)

Optional Accessories (not included with detector)

Minelab SDC 2300 Headphones (Waterproof)

Minelab SDC 2300 Carry Bag (not included with purchase, optional accessory)


Detector Technical Specifications
Coil 8″ Round Monoloop
Audio Output Built-in speaker
Koss 100 Ohm headphones (standard accessory – supplied)Koss waterproof headphones (optional accessory – not supplied)
Display 9 LEDs indicate detection, battery status and Threshold level
1 Low battery warning LED
Length Extended: 1500mm (59.1″)
Collapsed: 400mm (15.7″)
Weight (Excluding Batteries and Headphones) 2.4kg (5.3lbs)
Operating Temperature Range 0°C to 50°C (32°F to 122°F)
Storage Temperature Range –33°C to 70°C (–27°F to 158°F)
Batteries Li-Ion
Sensitivity 8 step position adjustment
Noise Cancel Automatic scanning
Ground Balance Automatic Ground Tracking (AGT)
Fast Ground Balance
Threshold 9 audio levels
Audio Pitch (Tone) Low: 550Hz ±15
High: 720Hz ±15
Transmission Pulse Induction
Technology Multi Period Fast (MPF)
Optional Accessories Waterproof Headphones, Carry Bag

The SDC 2300 gold detector performance is above the X-TERRA 705 and Eureka Gold and below the GPX Series. This detector offers an entry to Minelab’s Pulse Induction (PI) gold technology. It offers greater versatility in rugged terrains and for recovery of underwater gold because of its waterproof capability, ergonomic design and telescopic multi-position shaft.

** Free Shipping, handling and full insurance value included on this item **

Rob’s Detector Sale is also offering a one-day free training day on this detector with purchase from us along with unlimited support beyond the sale.

For more information on this metal detector, please contact us through the site’s email or give us a call by using the following contact information for Rob’s Detector Sales –

Rob’s Detector Sales
Surprise, Arizona
623.362.1459 office line
602.909.9008 cell or text message
[email protected] – email

Additional information







2 reviews for Minelab SDC 2300 Gold Metal Detector “New Version” – 100% Waterproof

  1. [email protected]

    Great detector in a compact, easy to use package. Literally just an on/off switch and sensitivity switch. Anyone can use this powerful little detector to find gold. The small 8″ coil is particularly handy to use in bedrock, really easy to poke around boulders and crevices. The technology in this detector is unique in that it’ll find the nuggets that were too deep for VLF detectors and too small for PI detectors. The ultimate prospectors combo would be an SDC and a GPZ for cleaning all the gold out of old nugget patches.

  2. director

    This is a super little machine that can pick up most anything a 7000 can find if you are in shallower circumstances. Also if the ground is damp and there are storms around it performs in many ways easier and better than the 7000. Yes, the coil head is smaller, but overall the 2300 has lots of features that make it a great buy. First is the size and weight; then comes ease of use with a very easy learning curve and finally, it is waterproof. Gotta love it.

    As always, Rob provides simply the best customer service and is always available to answer questions. I would not buy from anyone else.
